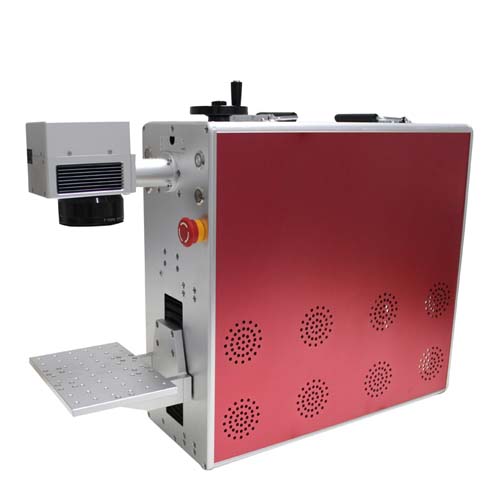

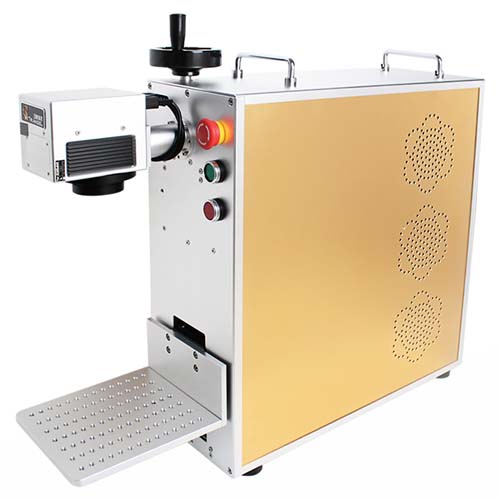

Portable Fiber LASER Marking Machine 20W 30W 50W

Portable LASER Marking Machine 20W 30W 50W

Specification

Voltage	AC 110/220V 50/60Hz
Laser Power	20W, 30W, 50W (optional)
Laser Repetition Rate	20KHz-80KHz
Laser Wavelengths	1064nm
Marking area:	110*110mm(70-300mm optional)
Marking Speed	10000mm/s
Marking Depth	≤1.2mm
Minimum Line Width	0.012mm
Minimum Line Width	0.012mm
Minimum Character	0.15mm
Repeated Precision	±0.003mm
Beam Quality	M2 <1.5
Focus Spot Diameter	<0.01mm
Output Power of Laser	10%~100% continuously to be adjusted
System Operation Environment	Windows XP / W7--32/64bits / W8--32/64bits
Cooling Mode	Air cooling--Built-in
Temperature of Operation Environment	15℃~35℃
Communication Interface	USB
Optional	Rotary Device, Moving Table, other customized Automation
Working condition:	humidity 5%-75%, free of condensed water
Marking format:	graphics, text, bar codes, two-dimensional code etc.
Scanning head:	high speed optical scanning galvanometer
Focus assistance:	double red pointer combined in head
Warranty:	2 years
Optional:	rotary device, moving table, other customized automation

Application Area

Electronic components	resistance, capacitance, chips, printed circuit boards, computer keyboard etc.
Apparatus and meter	panel board, nameplates, panel signs, precision equipment etc.
Hardware tools	knives, tools, measuring tools, cutting tools etc.
Mechanical parts	pistons, bearings, gears, shafts, clutch, standard parts, motors, etc.
Daily necessities:	cosmetics, labels, handicrafts, zipper, key holder, sanitary ware, eyewear, LED light etc.
Digital electronic	computer, laptop, digital camera, mobile phone and accessories etc.
Jewelry	rings, necklace, earrings, gold, silver etc.
Medical	medical device, surgical instruments, medical packaging etc.
Packing	dishware ,food, beverages, smoking and alcohol, plastic packing bag etc.
