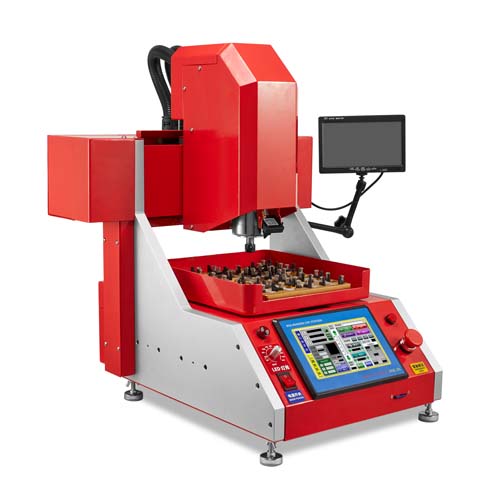

iPhone IC Grinding Machine - CNC Router IC Engraving Machine

Product Description

iPhone IC Grinding Machine - CNC Router IC Engraving Machine

This machine is perfect to grind and remove the CUP, HHD, WIFI, FONT chips in iPhone series mobile phone without any damage in the board. It is effective machine to help you repair the iPhone 4, 4S, 5, 5S,6,6p and ipad,etc. You can use the soldering station to solder a good chip in the board after grinding. Great grinding machine in mobile phone repairing and refurbishing.

Technical Parameters

Machine Dimensions	580X560X750mm
Mould size:	mso-ansi-language:EN-US;mso-fareast-language:ZH-CN;mso-bidi-language:AR-SA">150X135 mm
Engraving area	mso-ansi-language:EN-US;mso-fareast-language:ZH-CN;mso-bidi-language:AR-SA">200X100X100 mm
Rail type	Linear guide
Type of screw	Ball screw 1605, Pitch 4mm
Spindle motor	800W water cooling spindle , 0-24000r/min
Collet type	ER11,1/8"(3.175mm) Collet
Repeat positioning Accuracy	0.01mm
Communication interface	Not need computer SD Card
Software Compatability	Firmware v1.o
Machine weight	78kg

Packing list

Mould x 9 pcs for IP( 6/6P/6S/6SP/7/7P/8/8P/X, Size:150*135mm) with relative files datas.

Optional moulds (ipad2 new /ipad2 old,ipad3,4,5,6 Ipad mini 1,2,4 RE:No files & data )

Power cord x 1

Ground wire x 1

Drill tips x 1 box(50pcs)

Allen wrench x 1

Spindle wrech x 2

Dust blower x 1
