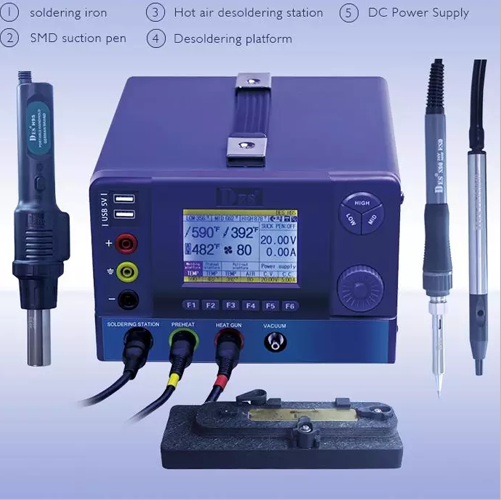

Germany DES 5 IN 1 Soldering Solution DES H95

Germany DES 5 IN 1 Soldering Solution DES H95

1.soldering iron

2.Hot air Gun

3.SMD suction pen

4.Desoldering platform

5.DC power supply

Model	DES-H95
Display	TFT LCD
peak power	1800W
Voltage	220VAC/50Hz 110VAC/60Hz
Device Dimension	443420CM
Device weight	6kg
Hot Air Gun
Power	220V / 110V
Power consumption	1500W
Temperature Range	80-500℃
Temperature error	within 5℃
air flow volume	55-85L/Min
DC turbo fan	12V/8300 rotation
heating element	220V/A1526; 110V/A1525
high temperature drivepipe	GP5(GP6 need buying sperately)
handle cable Length	1.2 m
Weight	250g
Soldering Iron
Part No.	S90
Power	90W
Temperature Range	80-500℃
Tip to Ground Resistance	Under 2 Ω
Tip to Ground Potential	Under 2Mv
Output Voltage	24V
high temperature ferrule	GT04
Tip type	T series
Tip length	57.5mm
cable length	1.2m
handle weight	100g
Heat element	A1529
Vacuum Sucking Pen
Power	10W
absorbing pad material	Conductive silica gel
Vacuum pump pressure	280mm Hg
Max suction capability	120g
Weight	50g
Tube size	1100(L)X6 mm
Bend absorbing tip	the inside diameter 0.4mm & 1.1mm the outside diameter 3mm & 10mm
Bend absorbing tip 0.4mm use	max 1.2g Flat small resistors and other small components
Bend absorbing tip 1.1mm use	max 4g small IC(8-40 pin)
Bend absorbing tip 1.1mm + absorbing pad Φ 3mm use	max 40g IC(more than 40 pin)
Bend absorbing tip 1.1mm + absorbing pad Φ 10mm use	max 120g big electronic unit

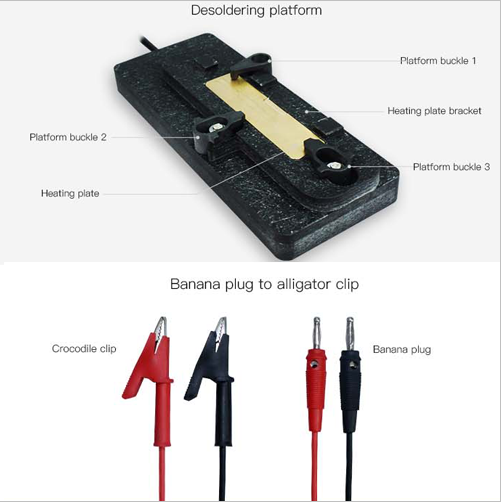

Desoldering Platform
Model	P120E
Temperature Range	80-300℃
Power consumption	90W
heating element	A1529
Tip to Ground Resistance	Under 2 Ω
Tip to Ground Potential	Under 2Mv
Dimension	166.33.2cm
Voltage	24V
Weight	420g
DC Power Supply Output
Voltage range	1.0V~20.0V
Current range	0.01A~5.00A
