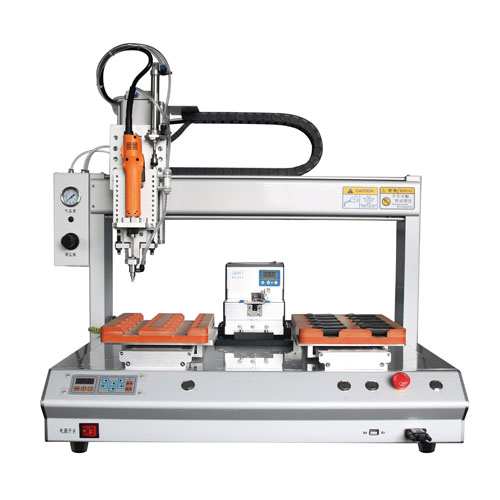

Desktop Screw Fastening Machine

1.Desktop type, can be placed on the production line.

2.Optional Full English marked machine body, to be international application.

3.Double Y-platform, Automatic working alternatively, saving the time of placing object.

4.The screw automatic ranking, qutomatic feeding, safe and silence.

5.Optional vacuum suction or blowing.

6.Main components of the machine are high quality, ensure the reliability and accuracy.

7.Optional interface of English/Chinese.

8.Fixture and tooling available.

Product Description

work schedule	X	400mm
	Y	400mm
	Z	100mm
speed	X-Y-Z	5-500mm/sec
Repeat accuracy	X-Y-Z	±0.05mm
Load	Work Load	6kg
	Tool Load	4kg
Outside dimension		750mm620mm590mm
weight		75KG
Machine appearance structure		Airline aluminum alloy structure+ Sheet-metal spray paint+ Touchscreen
Driving Mode		stepperMotor+HIWIN straight line guide rail+Elatech synchronous belt
Working quantity		1pcs
Electric screwdriver quantity		1pcs
Feeder quantity		1PCS
Motor	Mode/power	Two-phase stepper(2PH Stepper 57D 4A[customize Motor 1 year guarantee])
	drive	Qinglan drive
Power supply		Customize Power supply240V/50Hz 2 years guarantee
Rated power		Max.350W
Driving power	Voltage	24VDC
	Current	Max.3.5A/Axis
Programming mode		Teaching style/Touchscreen
Motion control system		Touchscreen Motion control system.
Program storage	Point location file	≤99
	Point location	≤999
Communication way		RS-232
I/O output		8 in 16 out
Alarm Item		screwloose,less punch,empty punch(option)
electric screwdriver torsion		adjustable(Taiwan KILEWS)
fixture		customize
