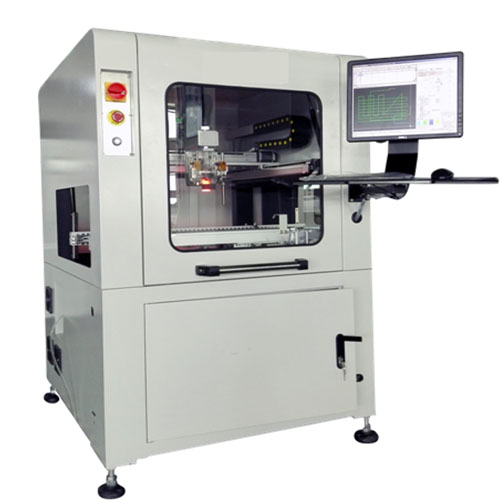

Selective Conformal Coating Machine - Online

Selective Conformal Coating Machine - Online

1. X, Y, Z axis drive platform adopts precision ball screw with Fuji servo motor.

2. Achieve selective coating for various kinds of PCB.

3. Straight line, circle, arc coating and dispensing.

4. Can effectively and evenly coat edge of the components, eliminate the spray shadow effect.

5. Accuracy: ±0.02mm.

6. With high-speed, high reliability, high stability of the transmission and control system.

7. 2 valves can switch spray and coating action automatically, to achieve high-density PCB coating process.

8. With smart automatic width adjustment function (automatically adjust after inputting the board width).

9. Programming mode: software programs automatically after inputting the data, teaching panel programs automatically after inputting the track.

Dimensions	L1060W1200H1700mm
Housing material	T20mm chroming smooth steel plate
Control mode	PC+ Motion card
Programming	Teaching panel
Program capacity	>1000
Conveyor height	900±20mm
Conveyor speed	0-5000mm/min
Conveyor direction	L to R, R to L
Motor	Two stepper motors
PCB width	50-450mm
Adjustment mode	Smart auto adjust
Adjustment drive mode	Stepper motor+ double screw rod
X, Y, Z drive mode	Japan Fuji servo motor+ accurate screw rod module
X, Y, Z max speed	800mm/s
Valve	One spray valve, one needle valve
PCB size	Max L450mm*W450mm
PCB height	Max 70mm
Charging bucket	One 10L stainless steel pressure tank with stir function+ one little stainless steel pressure tank for cleaning
Cleansing function	Yes
Illumination	Yes
Inspection	LED UV inspection available
Voltage	220V
Air pressure	0.4Mpa-0.6Mpa
Power	1.7kW
