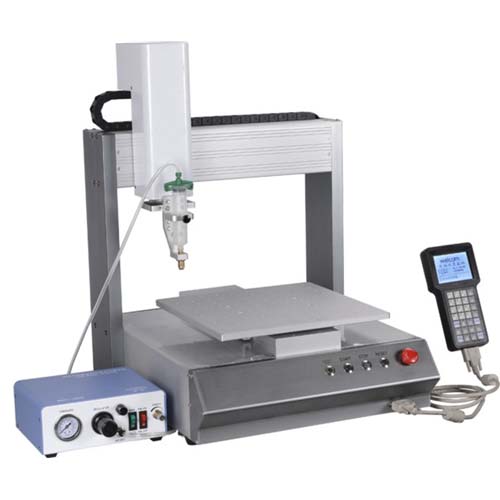

Glue Dispensing Robot - Tube Needle -Basic Model

Working Size 300*300mm, 400*400mm, 500*500mm,etc

3 Axis 4 Axis Optional

It is applied to fluid dispensing, such as, UV glue, AB glue, COB(black glue), white glue, EMI conductive

glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste,

transparent paint, screw fixative and so on.

Working Area	300(X)╳300(Y)╳100(Z)mm
Size	490(L)528(W)679(H)mm
Y/Z Max load	7kg/3kg
Travel speed	400mm/sec(XY)/200mm/sec(Z)
Drive mode	Stepping motor+belt+precise linear guide rail
Repeatability	±0.03mm
Program capacity	999 parameter files(65535 points per file)
Operation system	LCD panel /Teach pendant
Motor	Japan micro stepping motor
Movement pattern	3 axis point to point,continuous line, arc
I/O signal ports	4 inputs/4 outputs
Power supply	AC220V 50/60Hz 0.5kw
Work condition	Temperature 0-40℃;humidity 20-90%
Weight	About 35kg
