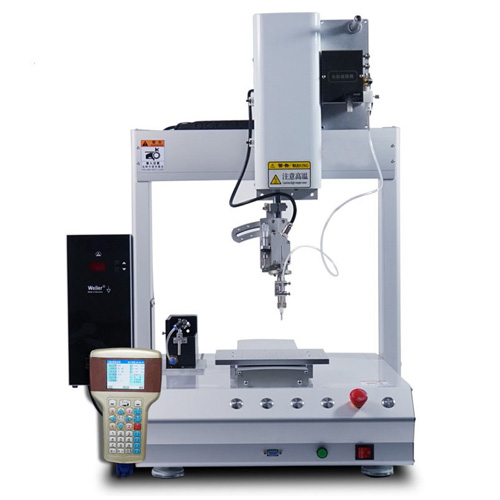

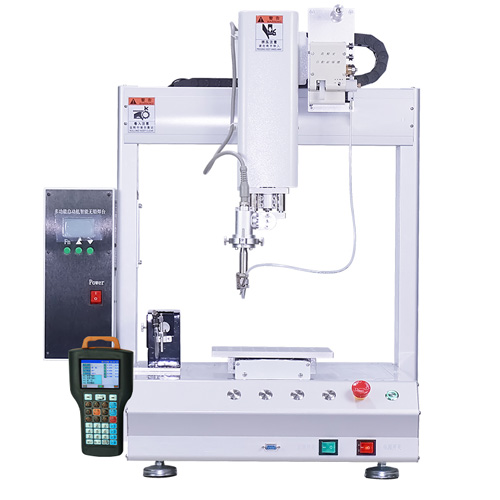

Automatic Soldering Robot 4 Axis

Features:

1. Applicable for different products, soldering temperature can be set freely.

2. The solddering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.

3. Numerically controlled temperature (static air condition: ±1℃)

4. With the handheld LCD Teaching Pendant, the programming is simple and easy to learn.

5. In the soldering process, the solder tip has rapid heat recovery and a long life span.

Voltage	220V
Heating Power	150W
Preheating Temperature Range	0℃~500℃
Axis	4
Operating Range (X * Y * Z)	400 x 400 x 100mm
Movement Speed	X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec
Repeat Positioning Accuracy	±0.002mm
Resolution	0.01mm
Maximum Load Weight	8kg (for work platform)
Solder Wire Diameter	0.5, 0.6, 0.8, 1.0, 1.2 (mm)
Demo File Capacity	≤999files, max 1994 points for each file
Program Capacity	max 255 programs
Operate Temperature	0℃~40℃
Operate Humidity	20~90%
External Dimensions	720mm x 700mm x 810mm
Weight	about 66kgs
