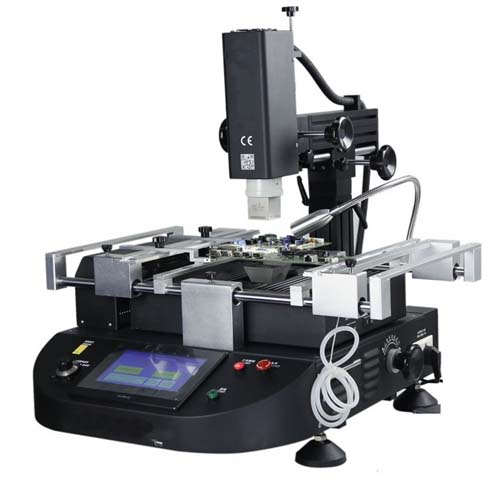

Manual BGA Rework Station Hot Air MST-R01

Manual Operation,LASER Positioning, Low Cost

Entry Level BGA Rework Ststion

Manual BGA Rework Station Hot Air MST-R01

1, Features

Stable Hot Air Heating System

Lower Heater Adjustable

Carbon Fiber Infrared Pre-heater

HD Touch Screen HMI Interface

Manual Placement, Desoldering

More modular panels observation point setting

Real-time temperature monitoring and over heating protection.

Emergency Stop Function

Add a side camera, more clearly observe the rework process(Optional)

2, Specification

Operation Mode Manually /Touch Panel

Voltage/Power AC220V±10 50/60HZ / Top 800W,Bottom 1200W,Infrared 2700W

Heating Mode Top nozzle/Bottom Nozzle Hot Air, Bottom Plates Infrared

Temperature Precision 3~5℃

PCB Size/Chip Size Max 410×370 mm Min 20×20 mm Chip: 2*2~80*80MM

Machine Dimension L630*W610*H690

Net Weight 45KG

Packing Size:L640*W690*H720(MM) / G.W: 75KG
