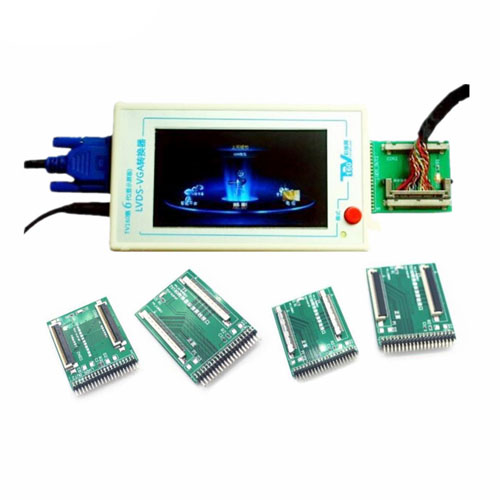

LVDS Turn VGA Converter TV160 -TV Motherboard Tester Tool

1. Furnished with 4.3" display screen, it is able to display LVDS image directly from the

mainboard, supporting external VGA.

2. It supports LVDS signal with various resolution ratios (60Hz, 120Hz and 240Hz) of single or

dual shielded wire.

3. It outputs uniform VGA signal (1280*720/60HZ) which is able to be connected to various

display, supporting CRT, liquid crystal and TV display (favorable compatibility).

4. The input interface features anti-static design with better anti-static capacity.

5. Convenient conversion among various LVDS formats.

6. Wide power input design, with 5V-12V adapter.

7.This converter supports complete LVDS formats and supports conversion of various

resolution ratio input (6bit, 8bit, 10bit) into VGA signal (1280*720/60HZ), with favorable

compatibility with various displays. Conversion of LVDS signal formats is realized by pressing

the mode button circularly.

TV Motherboard Tester Tools LVDS Turn VGA Converter
