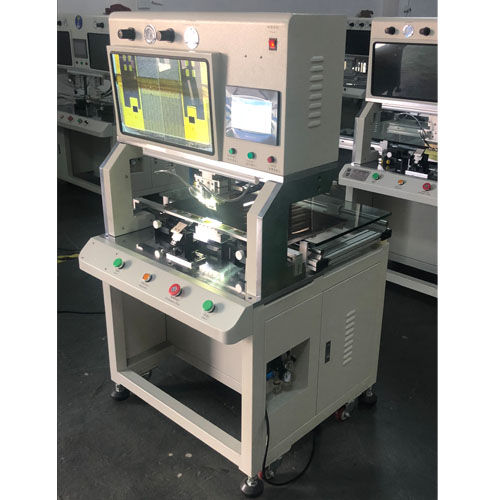

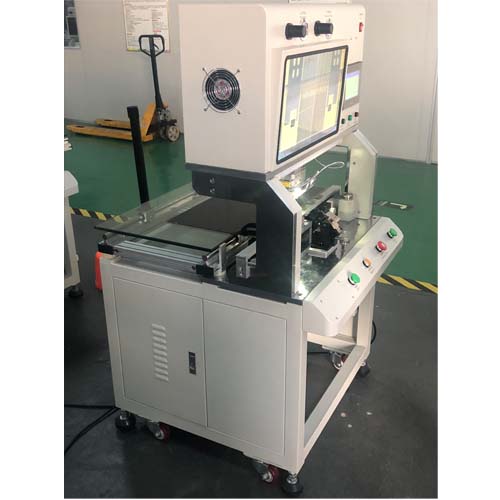

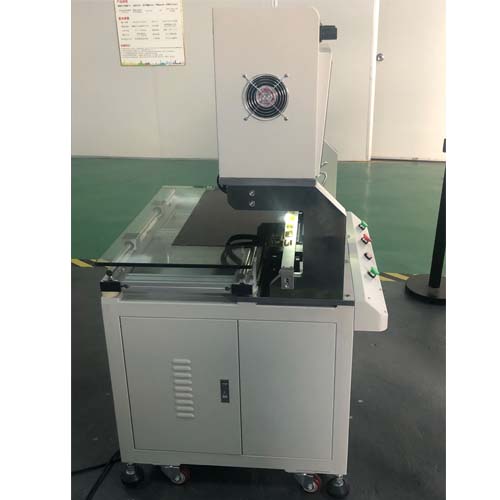

For 32 inch LCD - Small Size TAB COF Bonding Machine

MST-B32 Single Head, Suitable for Laptop LCD Panel Repair

Big Bonding Head 1.2*68mm Optional;

Extra Camera for PCB Bonding Inspection Optional;

220V/110V Optional;

Product Description

1, Main Features

Applicable for 32 inch LCD COF, TAB Bonding by pulse heating pressing, can repair 2k, 4k, Curved LCD with problems (white screen, black screen, color lines, multi-lines, flowers, vertical semi explicit, etc) caused by flex cable damage and loose.

2, Specification

Model Number	MST-B32
Bonding Type	Pulse Heating
Power Supply	AC220V, 50Hz
Power	1.5KW
Temperature Range	RT～350 ℃
Temperature accuracy	±0.5℃
Bonding Pressure Range	5 ~ 20Kgf
Hot Pres Time	1 ~ 50s
Hot Pres Precision:	Pitch 60um
Bonding Head Size	50*1.5mm
Bonding head adjust method	Manual
Heating segments	4 segments)
Hot press accuracy	X：± 0.1 ㎜、Y：± 0.2 ㎜
TAB Fixture	Micrometer 3 axis Adjustment
Stage Moving Method	Manual
Human-machine interface	7 inch colorful touch screen
Optical Position	HD Optical lens (A&F)
CCD Monitor	HD CCD & LCD Monitor
Productivity	28pcs/h
Air source supply	0.5~0.7 Mpa
Working environment	10-60 ℃
Machine size	8008501520mm
Machine weight	150kg
